Waterway Spa Hot Tub Pump Wet End 2" X 2" 56 Frame 4 HP Executive Bleeder Barb Kit

You are buying a 4 HP 56 Frame Waterway Executive 2" X 2" Wet End / Pump complete with Bleeder Barb & Silicon, Screws, Volute, Impeller, Seal, Face and the Wear Ring. This Wet End would fit a motor that shows 12.0-14.0 Amps on the motor label on high speed.. The Barb and Silicon is used in place of a plug for wet ends that have bleeders on them. Note: 315-1260 means nothing.The difference between a 48 or 56 Frame wet end is the spacing of the Motor Thru bolts. The 48 Frame will be 3 5/8" between or 5 3/16" in a X Pattern and the 56 Frame will be 4 1/8" Between or 5 3/4" in a X Pattern. Look on the label of the motor for the two amperages if you have a 2 speed pump, if its a single speed look for a single amperage. It will look something like this: 10.0/3.5 The 10.0 is the high amperage in this example. 8.0 = 1 HP 10.0 = 2 HP 12.0 = 3 HP 14.0 = 4 HP 16.0 = 5 HP NOTE: Your pump or motor may say a different Horse Power than what you see here, DO NOT go by what is listed on the motor, go by the amperage on the label. Note: Note: Note: There are some cases where a 12 Amp motor has a 4HP impeller so so if your motor has a 12.0 Amp Motor you need to check for the HP cast into the center of the impeller or look at the wear ring.. If the wear ring says 1, 2 or 3 then you have a 3HP impeller if it says 4 & 5 you have a 4HP. NOTE for the NOTE: TRUST ME ON THIS, everybody lies about their Horse Power. But the amperage does not lie. Most people are told they have 5 HP pumps, if you do the math two 5 HP pumps at 16 amps is 32 amps. Plus a 5.5 KW heater is 21 amps. That means with both pumps running and the heater on it will draw 53 AMPS. I bet your HOT TUB is on a 50 AMP breaker. Therefore contrary to what you have been told you DO NOT have a 5 or 6 or 7 Hp See our You Tube Video for more information about this Pump "How To Determine Which Wet End to Order Waterway Hot Tub Pump Executive Series The Spa Guy" Choose with care, If you return this part you pay shipping both ways.

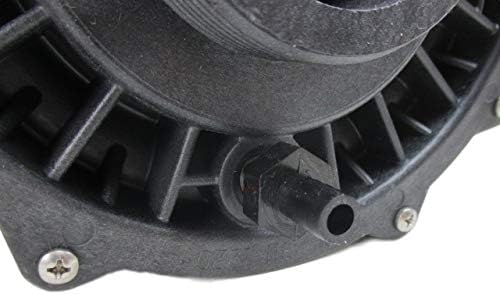

• Waterway Executive 4HP Wet End with Barb Bleeder Kit
• Fits 56 Frame Motors Only Note: 315-1260 is cast into every wet end back so that is not the part number..
• 2" x 2" Inlet and Outlet that measures 3" across the threads..
• See our You Tube Video about this Pump "How To Determine Which Wet End to Order Waterway Hot Tub Pump Executive Series The Spa Guy"

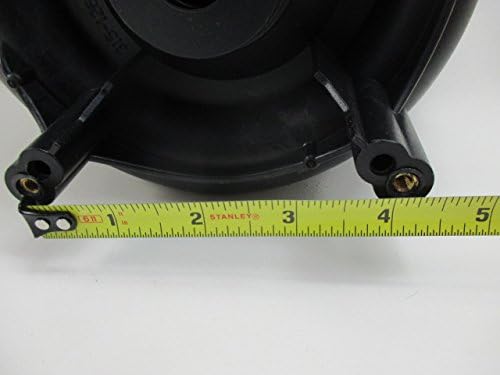

• 56 frame is 5 7/8" center to center on the X bolt pattern
